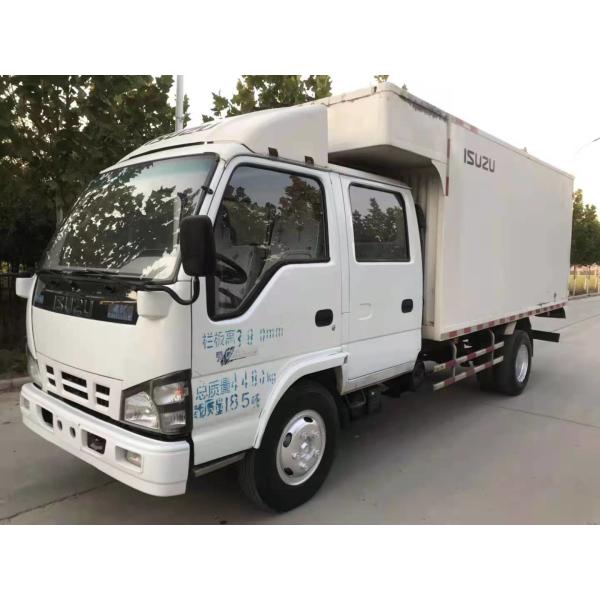

26ft Box Truck 4X2 Isuzu Refrigerated Van Truck Reefer Truck

Product Categories
QINGTE GROUP SPECIAL VEHICLES CO., LTD
Contact Now

26ft Box Truck 4X2 Isuzu Refrigerated Van Truck Reefer Truck

Brand Name : Isuzu

Model Number : QL5050X8HAR

Certification : CCC,,GSG

Place of Origin : China

MOQ : 1unit

Price : 15000~25000USD

Payment Terms : 30%TT as deposit, the balance should be paid before delivery; 100% irrevocable confirmed L/C at sight

Supply Ability : 3000units/month

Delivery Time : 30-45 days

Packaging Details : Nude packing after painted wax

Total Mass : 4925 (Kg)

Curb Weight : 2840 (Kg)

Rated Load Quality : 1850 (Kg)

Cargo Box Length : 4 Meters

Contact Now

10-year-old boutique CTIL 4K double-row container cargo, rear two wheels, big box 4 meters long, can be replaced with 4.2 meters manger, engine supercharged, power steering, tires are 80 to 90% new

Basic Information
Announcement model: QL5050X8HAR Types of: Van
Drive form: 4X2 Wheelbase: 3360mm
Box length level: 4.2 meters engine: Qingling china 4JB1-TC1
Gearbox: china MSB-5M Body length: 5.995 m
Body width: 1.91 m Vehicle height: 2.79 m
Front track: 1385mm Rear wheelbase: 1425mm
Vehicle weight: 2.79 tons Rated load: 1.99 tons
Total mass: 4.91 tons Maximum speed: 98KM/h
Origin: Chongqing Tonnage level: Light truck
Market segments: City delivery Remarks: 1. Optional flat cargo compartment, at this time, the curb weight is 2920kg, the rated load mass is 1860kg; 2. The deflector is optional; 3. The side door is optional, at this time the vehicle width is 1860mm; 4. The top of the compartment is closed , Cannot be turned on.
Engine parameters
engine model: Qingling china 4JB1-TC1 Engine brand: Qingling china
Common name of engine: china 4JB1 Number of cylinders: 4
Fuel type: Diesel oil Cylinder arrangement form: Inline
Displacement: 2.8L Emission Standards: National Three
Maximum output power: 70kw Maximum horsepower: 95 horsepower
Maximum torque: 206N·m Maximum torque speed: 1700RPM
Rated speed: 3400RPM Engine form: Electronically controlled high pressure injection (electronically controlled VEE distribution pump), supercharged and intercooled, cooled EGR

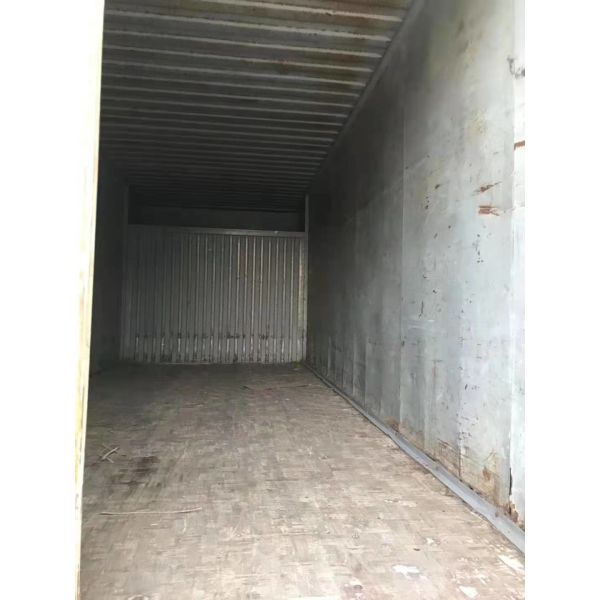

Cargo parameters
Container form: Van Cargo box length: 4.25 meters
Cargo box width: 1.784 m Cargo box height: 1.81 meters

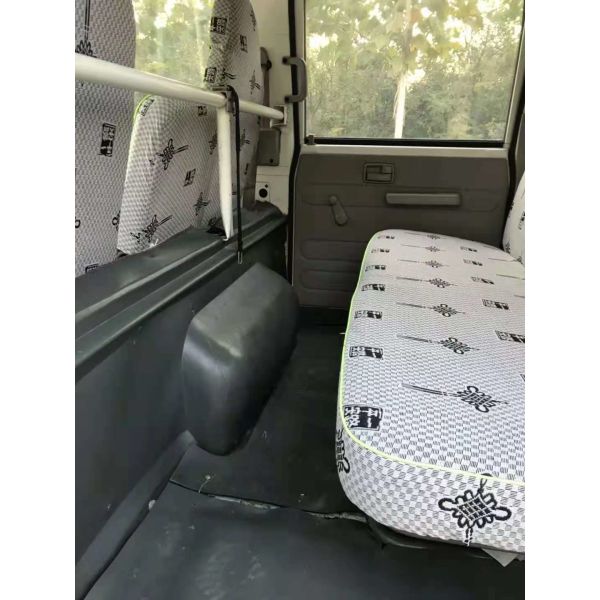

Cab parameters
Number of passengers: 2 people Number of seats: single row
Gearbox parameters
Gearbox model: china MSB-5M Gearbox brand: china
Shifting method Manual Forward gear: 5 gears
Number of reverse gears: 1 piece
Tires
Tire specifications: 7.00-15,7.00R15,7.00-16,7.00R16 Number of tires: 6
Chassis parameters
Rear axle description: 3125 Number of springs: 8/6+5

26ft Box Truck 4X2 Isuzu Refrigerated Van Truck Reefer Truck26ft Box Truck 4X2 Isuzu Refrigerated Van Truck Reefer Truck26ft Box Truck 4X2 Isuzu Refrigerated Van Truck Reefer Truck26ft Box Truck 4X2 Isuzu Refrigerated Van Truck Reefer Truck26ft Box Truck 4X2 Isuzu Refrigerated Van Truck Reefer Truck26ft Box Truck 4X2 Isuzu Refrigerated Van Truck Reefer Truck26ft Box Truck 4X2 Isuzu Refrigerated Van Truck Reefer Truck
